Demonstrating the modularity of the FN 509® platform, the FN 509 CC Edge™ XL combines the best of the FN 509® Edge series for a high-performance pistol designed for speed, accuracy and control. Featuring the CC Edge slide with quick-detach compensator designed to reduce muzzle rise up to 25-percent and the full-sized LS Edge frame with improved texturing for secure grip, the FN 509 CC Edge™ XL delivers an extremely flat shooting experience with significant recoil reduction for faster sight picture recovery, improving speed to target, accuracy, and overall control of the pistol.
SPECS
- CALIBER: 9mm
- OPERATION: Double-action, striker-fired
- MAG CAPACITY: 10 or 17 Rd.
- WEIGHT: 29 oz
- BARREL LENGTH: 4.2"
- OVERALL LENGTH: 7.5"
- TWIST RATE: 1:10" RH
- HEIGHT: 5.9"
- WIDTH: 1.35"
- TRIGGER PULL: 4.5-6.7 lb.
- SIGHT RADIUS: 5.41"
PRIMARY FEATURES
Quick-detach FN Compensator that reduces muzzle rise up to 25 percent
Full-sized frame for improved controllability and shootability
Integrated magazine well and 17-round magazine with weighted baseplate for improved reload speeds
Flat-faced trigger that breaks cleanly at 90-degrees; approx. 4.5 – 6.7 lbs. pull
Precision flat-faced trigger

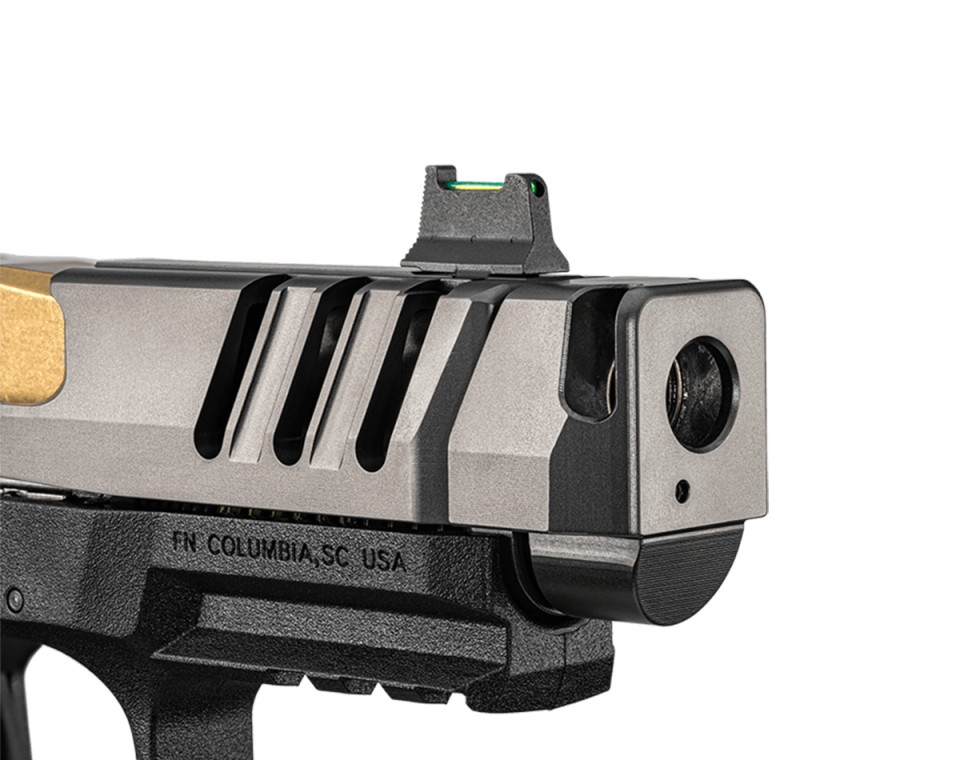

COMPENSATOR
Proprietary quick-detach (QD) compensator design proprietary non-threaded QD barrel
Toolless installation and removal for cleaning and maintenance
Reduces muzzle rise up to 25 percent
BARREL
4.2-inch cold hammer-forged, stainless-steel barrel with proprietary, non-threaded mounting lugs for FN Compensator
Gold titanium nitride PVD finish provides increased lubricity, hardness and long-wearing performance
Recessed target crown that protects rifling
SLIDE
Fiber optic front, all-black rear, co-witness height
Slide machined from stainless steel with graphite PVD finish
Lightening cuts that increase slide cycling for faster follow-up shots
FRAME
Full-sized frame that enables actuation of controls without breaking grip
Ambidextrous slide stop
Righthand-only magazine release
Flat-faced precision trigger that breaks cleanly at 90 degrees
Integrated, flared magazine well enables faster reloads
MAGAZINE
17-round magazine with weighted baseplate for faster magazine ejection
Compatible with 24-round FN 509 magazines with appropriate grip sleeve
SHIPS WITH
Ballistic case
Four MRD Mounting Plates
Two interchangeable backstraps
Three 17-rd magazines or three 10-rd magazines
Owner’s manual
Locking device
