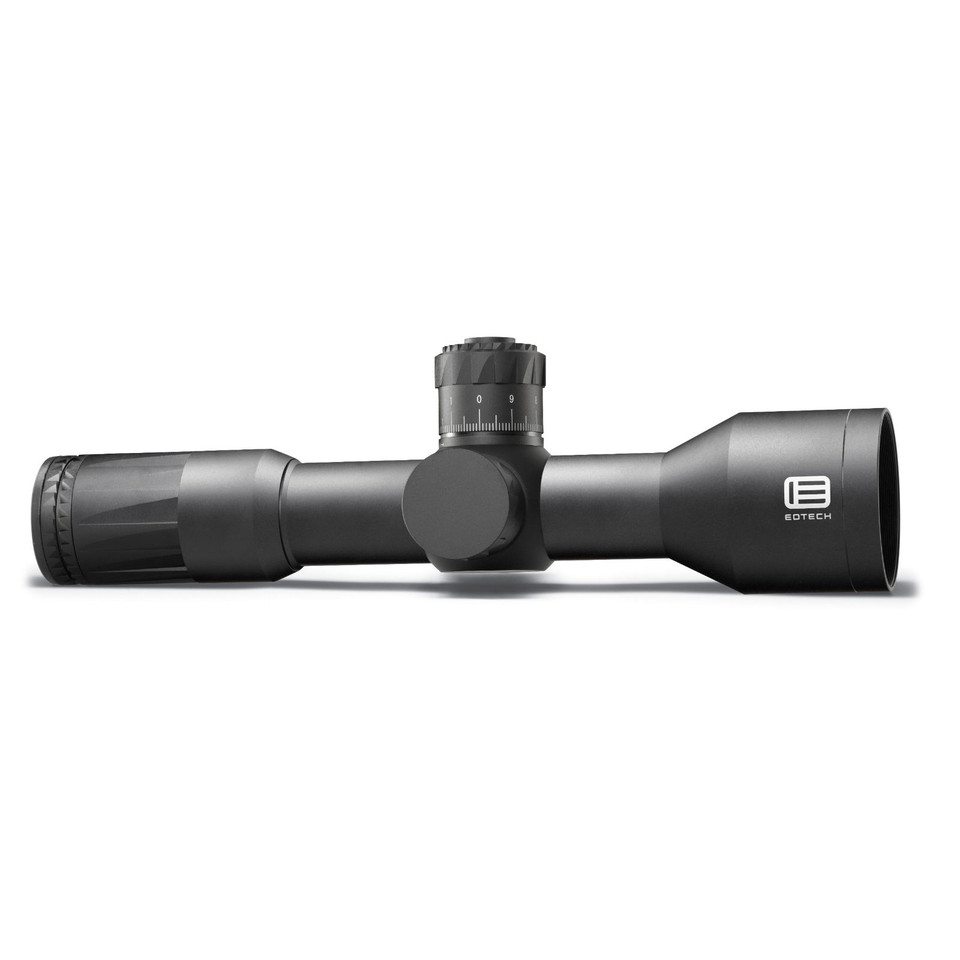

The Vudu 5-25X50 is ideal for short platform rifles. At approximately 11.2 inches in length, the 5-25X is one of the shortest first focal plane rifle scopes on the market. The elevation turret includes a push/pull locking system and EOTECH’s EZ Chek Zero Stop. One unique advantage of the short design is that it provides the ability to attach either a clip-on night vision or thermal device in front of the scope.
Included in the box:
- Vudu® 5-25X50 Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Sunshade
- Lens Cleaning Cloth
- Battery
- Zero Stop Wrench
Operator Manuals:
First Focal Plane
Overall Length
11.2" (285 mm)
Weight
29.5 oz (835 g)
Magnification
5-25X
Tube Diameter
34 mm
Objective Diameter
50 mm
Power Source
CR2032
Eye Relief
5X: 2.96-3.71" (75-94 mm)
25X: 3.27-3.63" (83-92 mm)
Field-of-View @ 100 Yards
5X: 23.3 ft (7.1 m)
25X: 4.7 ft (1.43 m)
Country of Origin
Made in Japan
The MD4 reticle is based on the Minute of Angle, or MOA, angle of measurement. With a known target size, this system allows the shooter to use angle ratios to determine distance of target with reliable accuracy. The MD4 reticle is 0.25 MOA per click adjustments that subtend to .25" at 100 yards.
Adjustment Graduation Per Click
0.25 MOA
Adjustment Graduation Per Rotation
34 MOA
Total Elevation Travel
100 MOA
Total Windage Travel
80 MOA
