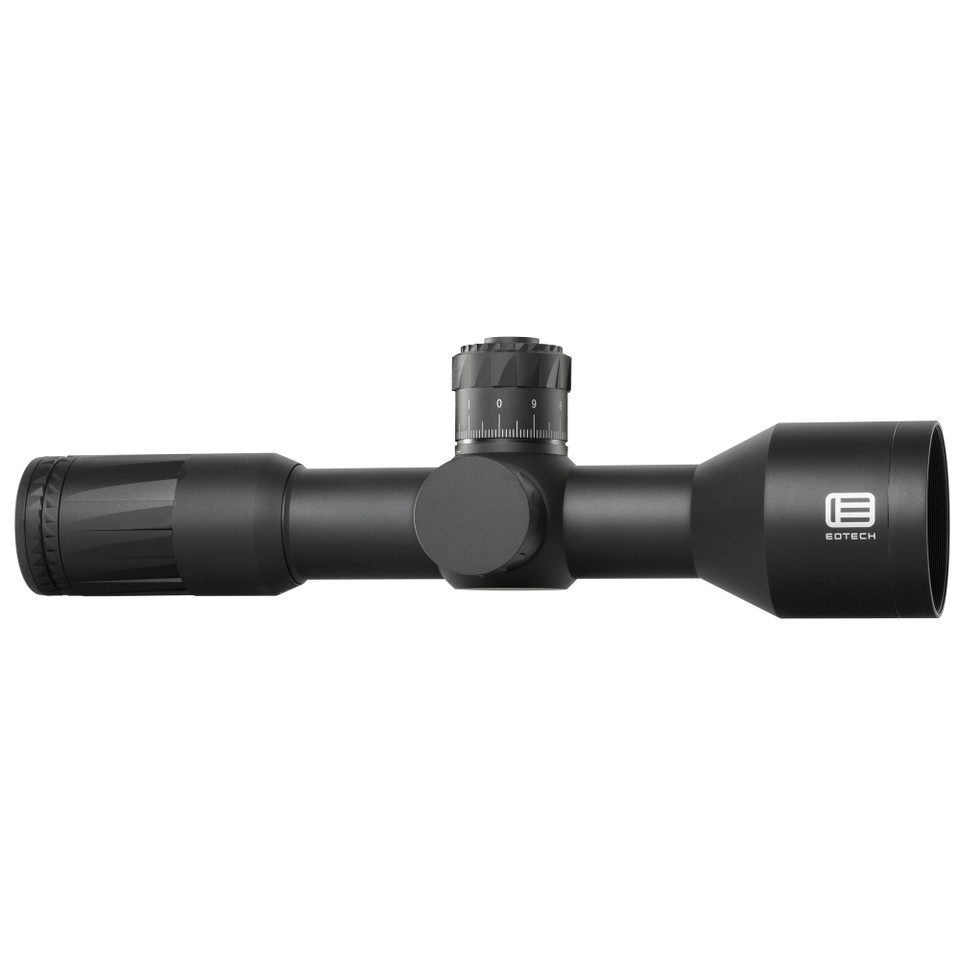

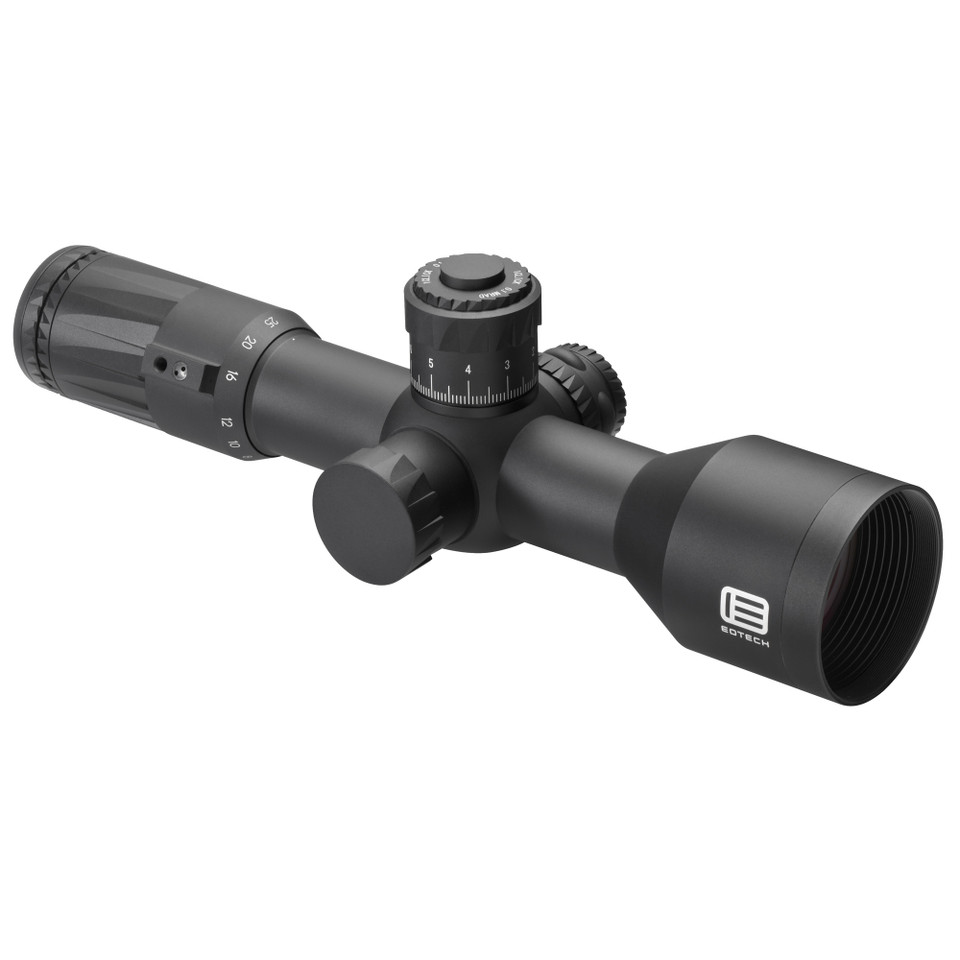

The Vudu 5-25X50 is ideal for short platform rifles. At approximately 11.2 inches in length, the 5-25X is one of the shortest first focal plane rifle scopes on the market. The elevation turret includes a push/pull locking system and EOTECH’s EZ Chek Zero Stop. One unique advantage of the short design is that it provides the ability to attach either a clip-on night vision or thermal device in front of the scope.
Included in the box:
- Vudu® 5-25X50 Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Sunshade
- Lens Cleaning Cloth
- Battery
- Zero Stop Wrench
Operator Manuals:
First Focal Plane
Overall Length
11.2" (285 mm)
Weight
29.5 oz (835 g)
Magnification
5-25X
Tube Diameter
34 mm
Objective Diameter
50 mm
Power Source
CR2032
Eye Relief
5X: 2.96-3.71" (75-94 mm)
25X: 3.27-3.63" (83-92 mm)
Field-of-View @ 100 Yards
5X: 23.3 ft (7.1 m)
25X: 4.7 ft (1.43 m)
Country of Origin
Made in Japan
The MD3 is a first focal plane MRAD-based hashmark reticle that provides ranging, holdover and wind compensation in a very clean sight picture. The stadia lines are pulled back from the illuminated center aiming dot for improved long-range accuracy.
Adjustment Graduation Per Click
0.1 MRAD
Adjustment Graduation Per Rotation
10 MRAD
Total Elevation Travel
29 MRAD
Total Windage Travel
23 MRAD
