Overview

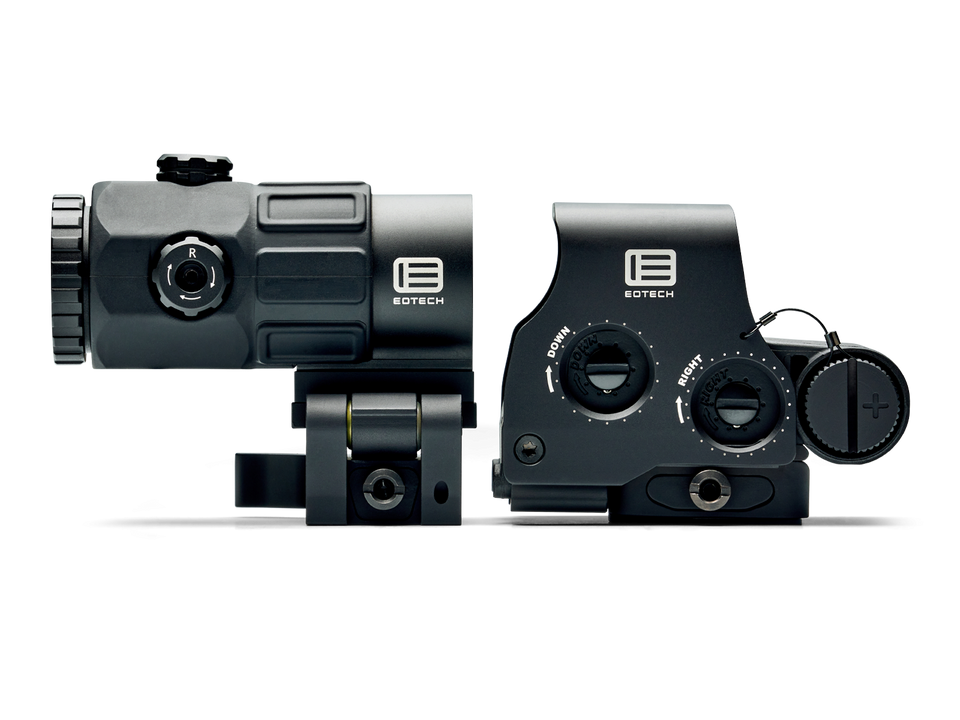

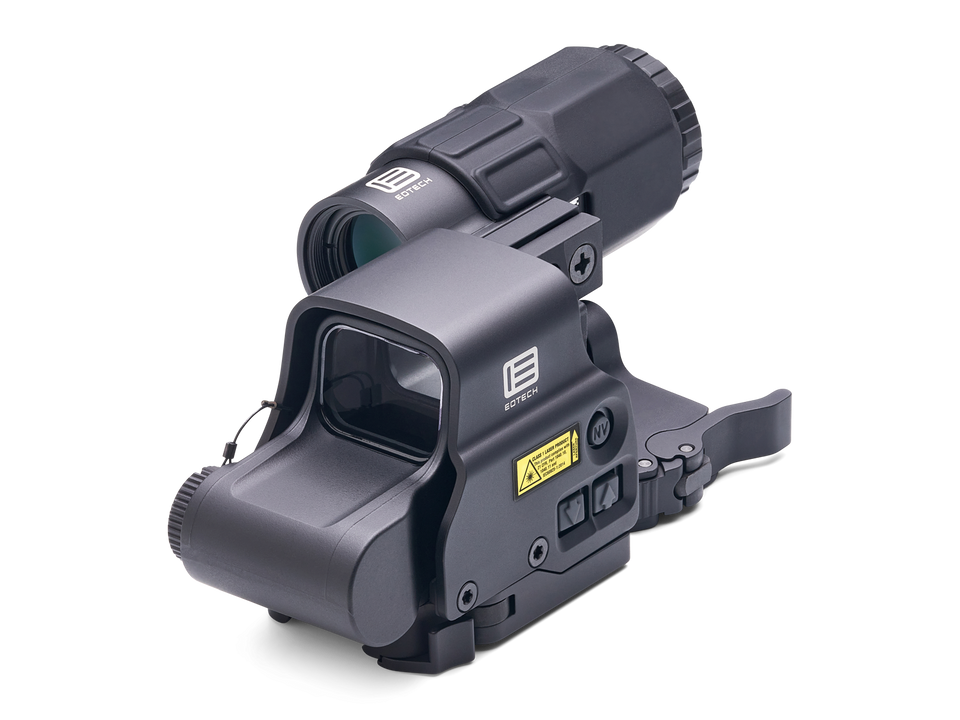

The Holographic Hybrid Sight V (HHS V), featuring a EXPS3-4 with a G45 magnifier combination is the perfect solution for Close-Quarters Combat situations as well as 600-meter targets. Instant transition is achieved through a Switch-To-Side (STS) mount that offers a simple and quick disengagement of the magnifier. This durable night vision-compatible system offers wide field optical performance for visibility in extreme low-light conditions.
* Aiming dots on the 4-Dot reticle may not be distinguishable without magnification.
Included in the box:
- HHS™ V (EXPS3-4 & G45.STS)
- Quick-Start Guide
- Warranty & Registration Card
- CR123 Battery
- Protective Case
Night Vision Compatible
L X W X H
7.7" x 2.3" x 3.3" (195.6 x 58.4 x 83.8 mm)
Weight
24oz (680.4 g)
Water Resistant
33ft. (10 m) depth
Mount
1" Weaver or MIL-STD-1913 rail
Windage & Elevation Adjustment
0.5 MOA per click
Brightness
20 daylight settings
10 additional settings for Gen I through III+ night vision devices
Power Source
1 x CR123 battery
Battery Life
1,000 continuous hours at nominal setting 12 at room temperature
Fixed Magnification
5X
Eye Relief
2.6" (66 mm)
Field-of-View w/ Magnifier
4.4°
Sealing
Fog resistant internal optics
Country of Origin
HWS: Made in USA
G45: Assembled in USA
