Description

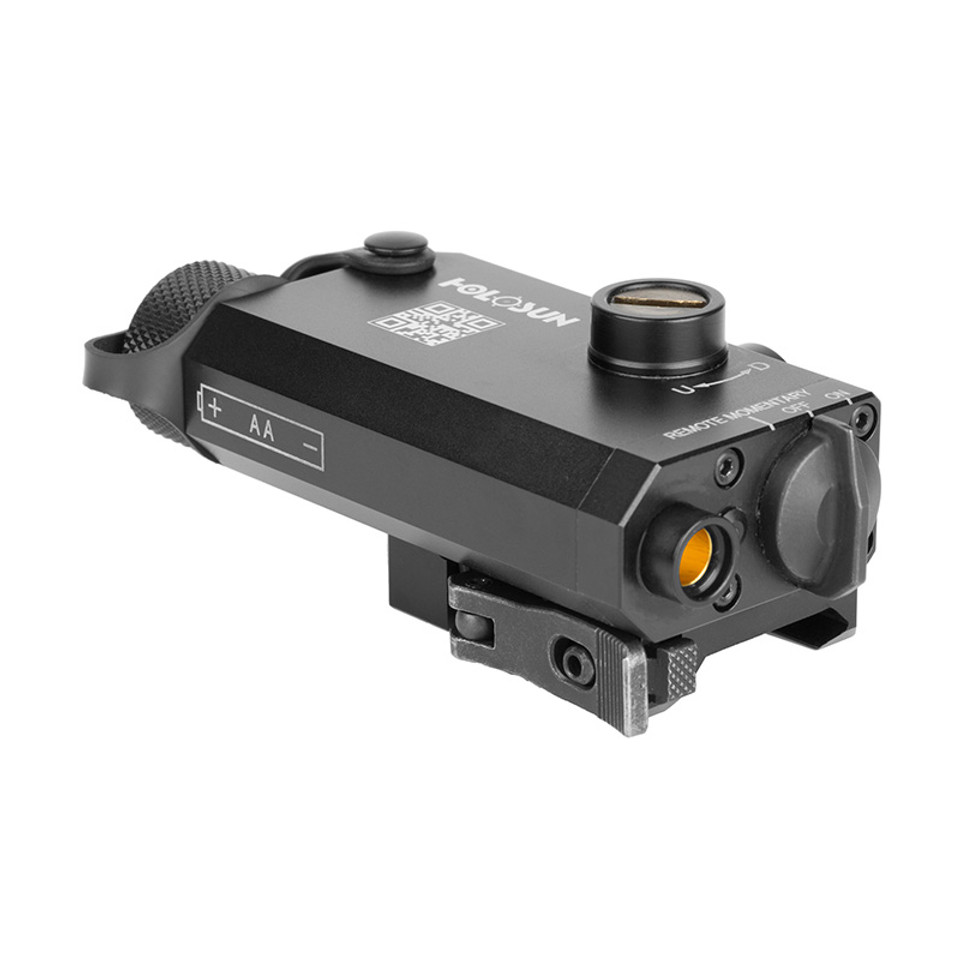

The LS117R is a class IIIa red laser aiming device designed for long gun applications. The LS117R features a 7075-aluminum matte black anodized housing with a quick release Picatinny rail mount. The LS117R is powered by a single AA battery which can provide up to 5000 hours of battery life.
The rear facing selector switch lets the user select between constant ON, OFF, or activation using the included remote pressure switch. The LS117R also include tactile windage and elevation adjustments for a precision zero.
In the Box
- QD Release Mount
- Remote Cable Switch
- T10 L Key
- User Manual
- AA Battery
PHYSICAL SPECS
| Window Size | N/A |

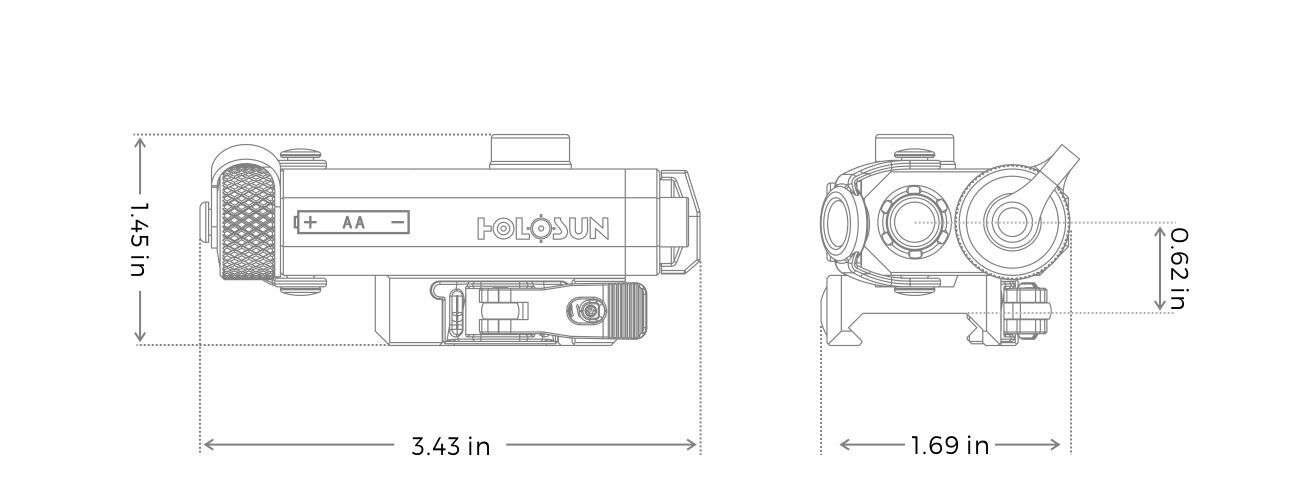

| Dimension (in) | 3×1.5×1.3 |
| Weight (oz) | 4.9 |
MECHANICAL SPECS
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | MAO |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~65℃ |
| Working Temperature | -40℃~51℃ |
| Submersion | IP67 |
| Vibration | 1000G |
ILLUMINATOR SPECS
| White LED Candela | N/A |
| Laser & Illuminator Type | Single Laser |
| White LED Output | N/A |
| IR Illuminator Class | N/A |
| IR Illuminator Output | N/A |
| IR Pointer Class | N/A |
| IR Pointer Output | N/A |
| Visible Laser Class | IIIA |
| Visible Laser Output | 1mw(low)/5mw(high) |
