Description

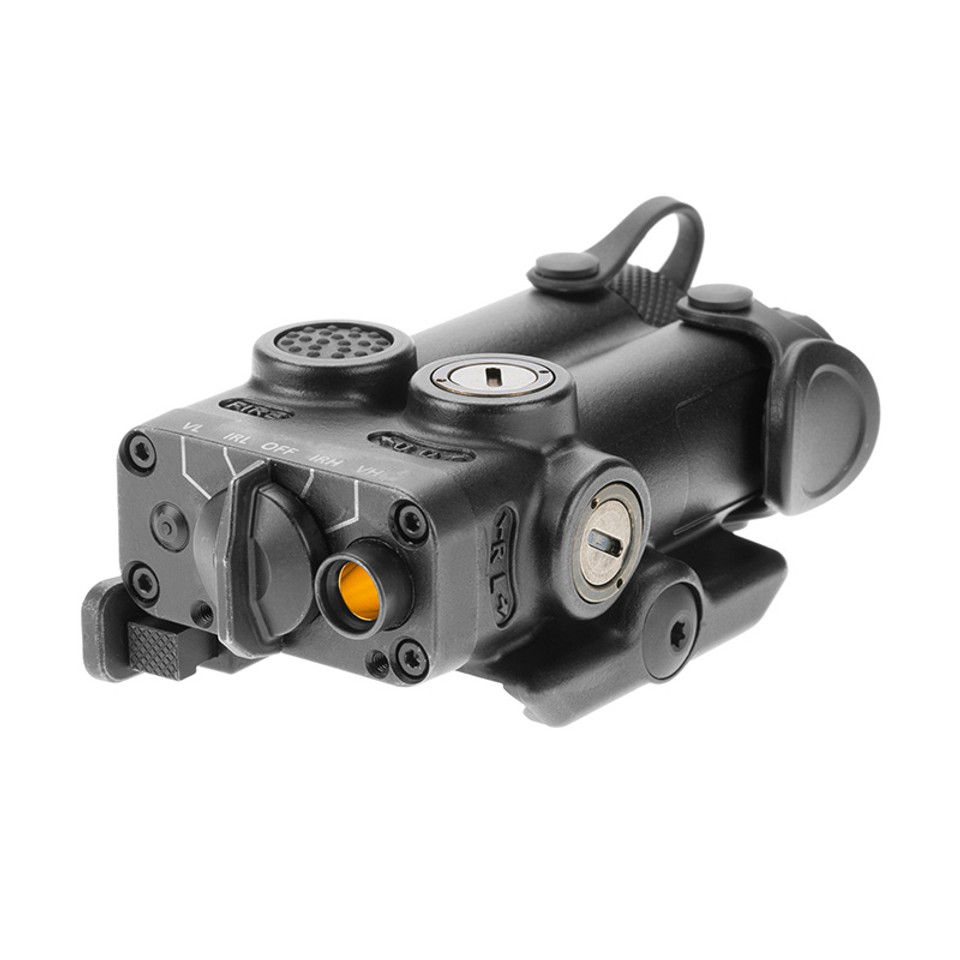

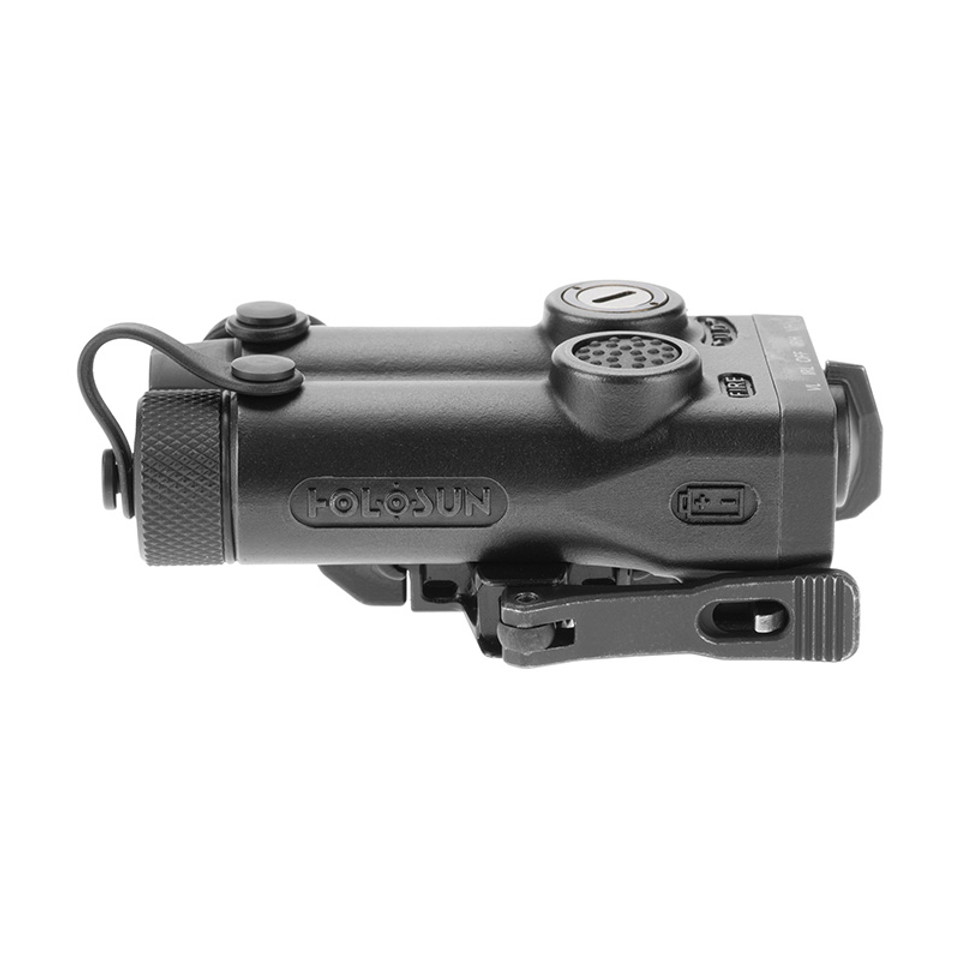

The LE221R is a class IIIa visible red laser aiming device with a coaxial mounted class 2 IR (infrared) laser for use with night vision devices. The LE221R features a grade 5 titanium housing with a quick release Picatinny rail mount. The LE221R is powered by a single CR123 battery which can provide up to 5000 hours of battery life.
The rear facing selector switch lets the user select between visible low, visible high, IR low, IR high activation using the included remote pressure switch or turn the unit OFF. The LE221R also includes tactile windage and elevation adjustments for a precision zero and a top mounted activation button.
In the Box
- QD Release Mount
- Remote Cable Switch
- T10 L Key
- User Manual
- CR123A Battery
ELECTRONIC SPECS
| Power Source | Battery |
| Battery Type | CR123A |
| Battery Life (Hours) | Up to modes |
| Brightness Setting | Up to modes |
PHYSICAL SPECS
| Window Size | N/A |
| Dimension (in) | 3.43×1.77×1.34 |
| Weight (oz) | 6.88 |
MECHANICAL SPECS
| Housing Material | Titanium |
| Surface Finish | Titanium |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±60 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~65℃ |
| Working Temperature | -40℃~51℃ |
| Submersion | IPX8 |
| Vibration | 1000G |
ILLUMINATOR SPECS
| White LED Candela | N/A |
| Laser & Illuminator Type | Dual Laser |
| White LED Output | N/A |
| IR Illuminator Class | N/A |
| IR Illuminator Output | N/A |
| IR Pointer Class | IIIB |
| IR Pointer Output | 0.1mw(low)/0.7mw(high) |
| Visible Laser Class | IIIA |
| Visible Laser Output | 1mw(low)/5mw(high) |
